Where is the thermocouple on a Whirlpool water heater?

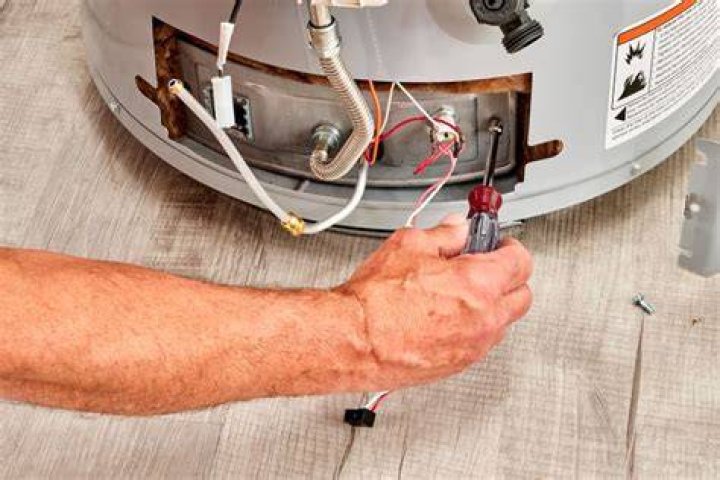

The thermocouple is a thin copper tube attached to the left of the manifold tube. Use the adjustable wrench to loosen the pilot tube by turning it counterclockwise. The pilot tube is a small-diameter tube located to the right of the manifold tube.

Correspondingly, where is the thermocouple on a water heater?

The job of the thermocouple The thermocouple is attached near the pilot light along the burner assembly, with the two ends of the metal placed in the flame of the pilot light, and the other end attached to a shut-off valve for the natural gas line that feeds gas to the burner.

Subsequently, question is, are water heater thermocouples universal? Universal Thermocouples. Universal thermocouples, as the name implies work on most water heaters. They are available online and in home supply stores for a reasonable cost. The length and the thread type are the two concerns when purchasing one.

In respect to this, how do you troubleshoot a Whirlpool water heater?

How to Troubleshoot a Whirlpool Electric Hot Water Heater

Check for leaks from the tank.
Check the breaker to be sure power is on for the water heater.
Unscrew the cover plates on the upper and lower access panels with a Phillips head screwdriver.
Check the limiter switch.
Troubleshoot water heaters that put out cold water.

How do you know if you have a bad thermocouple?

If you can't get the flame to light at all, and you're sure the gas is on, there's probably an obstruction in the pilot tube. If the flame lights and goes out when you release the gas control knob after holding it in for the recommended 20 to 30 seconds, that's the sign of a thermocouple malfunction.

Can you clean a thermocouple on a water heater?

Cleaning StepsTurn off the power to your hot water heater so that you do not risk becoming injured while cleaning the thermocouple. The ends of this piece may be corroded, preventing power from reaching the pilot light. Sand the ends of the thermocouple with emery cloth sandpaper.

How long does a thermocouple last?

Thermocouples can last several years, but they don't typically last as long as the furnace itself. If the pilot remains lit, but the main furnace doesn't stay lit, it's time to replace the thermocouple.

How much does it cost to replace a water heater thermocouple?

The No. 1 cause of pilot lights that won't stay lit is a worn-out thermocouple. It's easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater's burning chamber, it's easier to remove the whole burner and thermocouple assembly.

How do you fix a bad thermocouple?

A burned out or broken thermocouple should be replaced. To replace a thermocouple: Step 1: Unscrew the copper lead and the connection nut inside the threaded connection to the gas line. Step 2: Under the mounting bracket at the thermocouple tube, unscrew the bracket nut that holds the tube in place.

Can you clean a thermocouple?

If the Thermocouple is faulty it will cause the unit to shut down. How to clean? Remove Thermocouple from pilot assembly, using steel wool or emery cloth to lightly clean the tip removing any soot or build up that might have accorded due to an improper pilot flame.

What causes a thermocouple to fail?

Changes in temperature can cause regular expansion and contraction in metal, which will cause thermocouples to weaken over time. After enough time, metal fatigue can cause a thermocouple to break. If thermocouples start to give out unusual readings, it may be suffering from metal fatigue.

How do you test a thermocouple?

Steps

Locate the pilot light controls on the gas valve.
Turn the pilot light on for 30 seconds.
Release the button to see if the pilot light goes out.
Turn off the gas supply to test the thermocouple again.
Count to 20 and wait for the pilot light to go out.
Listen for clicking near the gas valve.

How do you test a thermocouple on a water heater?

Test thermocouple

using multimeter: Thermocouple has 2 ends: one end screws into gas valve, other end is positioned in the pilot flame.

Light pilot. Hold down pilot button for 30 to 60 seconds.
Relase pilot button.
If pilot light goes out when button is released, then thermocouple is most likely at fault.

How do you remove a thermocouple?

Replacing a Thermocouple

Shut off the gas and electrical power to the furnace.
Remove the furnace's access cover.
If the furnace has been running, wait 30 minutes for the thermocouple to cool completely.
Unscrew the nut that holds the thermocouple end fitting into the gas control valve, using an open-end wrench.

How do you replace a thermocouple on a water heater?

How to Replace a Water Heater's Thermocouple

Turn off the gas supply.
Unfasten the three nuts that hold the thermocouple and the two gas tubes to the valve.
Detach the thermocouple from the burner.
Install the new one the same way that you removed the old one.
Turn the gas back on and follow the lighting instructions on the water heater.

Does the length of a thermocouple matter?

The length of a thermocouple has no effect on its measurement accuracy or its ability to transfer the signal to the instrument. In other words, thermocouples do not experience “voltage drops” or power loss along its length as a high current power line might possess.

Where are Whirlpool water heaters made?

Whirlpool water heaters are actually made by the American Water Heater Company (AWHC), one of four such manufacturers in the United States. Companies like Whirlpool, GE and Kenmore slap their stickers on the side of the tank and distribute the product to stores such as Lowe's and Sears.

Where is a thermocouple used?

Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered appliances.

Why a hot water heater is not working?

First, reset any tripped circuit breaker, and replace any blown fuse. Next, check if power is being supplied to the electric water heating element thermostat. When the water's not hot enough, the problem can be an undersized water heater, crossed hot and cold connections, or a faulty heating element or thermostat.

How do I reset my water heater?

The water heater reset button is the red button located on the water heater itself (just above the thermostat). Some water heaters may have two reset buttons-one for each thermostat. To access the reset button, you may have to remove the metal plate covering the thermostat that's held in place by screws.

Where is the reset button on a gas water heater?

A water heater reset button, usually red, is located in the center of the limit switch just above the water heater thermostat. The water heater limit switch is a safety device that will shut the power down to the water heater if something malfunctions and the water gets to hot.

Will a water heater work with one element?

The upper thermostat takes first priority, heating the water to a preset temperature before powering up the lower thermostat to heat the water to its final temperature. Only one heating element will be active at any one time.

What is the difference between Type K and Type J thermocouples?

Type J Thermocouple: The type J is also very common. It has a smaller temperature range and a shorter lifespan at higher temperatures than the Type K. It is equivalent to the Type K in terms of expense and reliability. Thermocouple grade wire, -346 to 1,400F (-210 to 760C) Extension wire, 32 to 392F (0 to 200C)

How do I know if my thermocouple is bad on my water heater?

This means that if the thermocouple goes bad, there is no way of detecting if the pilot light is burning or not. And when the pilot light goes out, you will not have hot water supply in your plumbing system. To test if the problem is with the thermocouple, try to relight the pilot.
