How do laser levels set grades?
Leah Mitchell updates

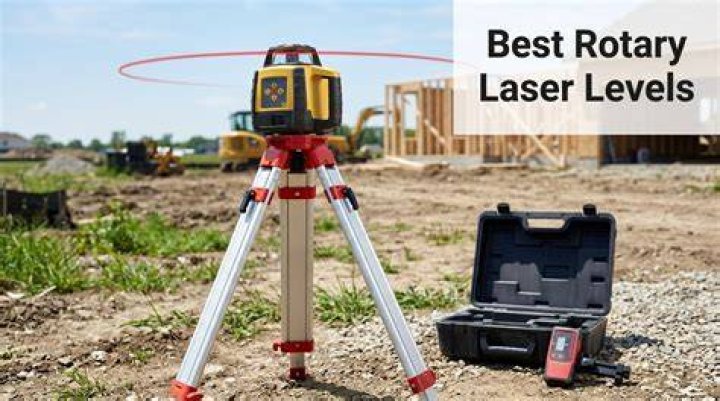

How to Set Grade with a Laser Level
- Set up the laser level on a tripod on firm dry ground.
- Turn on the laser level and give it a moment to self-level.
- Identify the initial height of your grade.
- Place the bottom of the leveling rod at the desired height.
- Adjust the laser detector up or down until you hear a beep.
.
In this regard, how do you use a laser level for drainage?
Place the tripod stand on a dry, firm ground on the site of the drainage project. Ensure that it is stable, so it does not move. Spread the tripod legs at a distance equal to each other. Press the tripod's pin firmly into the ground to prevent it from tripping over and damaging the laser level.
Subsequently, question is, what must be displayed while operating a laser level? Eye safety The laser beam even in low power can cause damage to the eyes, if one stares directly into the beam. It is very important to keep the eyes safe. A safety glass or specialized goggles must be worn while working with a laser level.
People also ask, how do laser levels work?
Laser levels use a laser, an amplified, focused beam of light emitted from a solid-state device called a diode. Laser levels project a beam of light that can be used as a visual chalk line when a straight and level reference point is needed.
How do you use a laser level for slope?
How to Set Grade with a Laser Level
- Set up the laser level on a tripod on firm dry ground.
- Turn on the laser level and give it a moment to self-level.
- Identify the initial height of your grade.
- Place the bottom of the leveling rod at the desired height.
- Adjust the laser detector up or down until you hear a beep.
Related Question Answers
How do you test a laser floor level?
Find the High and Low Spots in a FloorIt's easy to figure out with a laser level. Just set the laser on a few scraps of wood or a paint can in a spot that will project a beam across the floor. Make a quick sketch of the floor plan. Then pick a spot and extend a tape measure to the floor.How do you measure the slope of a trench?
For example, if the trench is 6 ft deep and 20 ft wide across the end of the trench and the bottom of the trench is 2 ft wide, the slope can be calculated as follows: Horizontal distance = 20 ft – 2 ft ÷ 2 = 9 and the Vertical depth = 6 ft; Slope = 9 ÷ 6 = 1.5 to 1, which is the slope needed for type C soil.What is a grade laser?
Grade lasers or slope lasers provide all the great benefits of our self-leveling lasers, but with a rotary laser level, your level also performs automatic slope or grade measurements, while maintaining the same self-leveling accuracy, distance, and durability.What's the best laser level?
Top 6 Laser Levels Review 2020- DeWALT DW089K. Editor's Choice. Editor's Choice.
- DeWALT DW088LG. Best Green Laser Level. Best Green Laser Level.
- Topcon RL-H4C. Best Rotary Laser Level. Best Rotary Laser Level.
- Bosch GLL 55. Most Portable Level. Most Portable Level.
- Pacific Laser Systems PLS-60588. Best Magnetic Level.
- Bosch GPL 3.
How far does a laser level work?
Rotary Laser Level Working RangeThe range can be up to 2,000 feet in diameter with a laser detector most likely used outside due to the distance and inability to see the laser outside. If you're inside and can see the laser, the range can be greater.How accurate are laser levels?
A quality laser level accuracy is plus or minus 1/16th of an inch (0.0625 inches) per 100 feet; 10 times greater than spirit level accuracy of over 1/2 of an inch (0.6 inches) per 100 feet. Contractors' understanding of laser levels is growing and more and more are using them indoors and outdoors.What are the different types of laser levels?
The three basic types of construction lasers are dot lasers, line lasers, and rotary lasers. Dot lasers are used to project a reference point or points on work surfaces such as walls and ceilings. Line lasers beam a level line in one direction along a single work surface.What is laser level used for?
In surveying and construction, the laser level is a control tool consisting of a rotating laser beam projector that can be affixed to a tripod. The tool is leveled according to the accuracy of the device and projects a fixed red or green beam in a plane about the horizontal and/or vertical axis.What are the dangers of laser levels?
The human blink reflex to bright light will protect you from exposure to these lasers, provided you dont stare into the beam. Class 3R lasers are intermediate in power and can cause eye damage if viewed directly. Class 3B and Class 4 lasers are higher in power and can cause eye damage, skin damage, and fires.What are Class 4 lasers used for?
As a guideline, under the old class system, lasers were considered class 4 when their optical power was over 500 mW. There are in fact many applications that use class 4 lasers; laser engraving, 3D printing, and material cutting, just to name a few.Is a Class 3 laser legal?
Class IIIb lasers cannot legally be promoted as laser pointers or demonstration laser products. Higher powered Class IIIb or IEC Class 3B lasers are dangerous and can cause either temporary visual effects or an eye injury.Are laser levels safe?
Laser Level Safety. Even though the beam coming out of a laser level has only a small amount of power, it is concentrated enough to harm your eyes. Anyone using a laser level should follow the below precautions: Never point a laser where it can encounter any vehicle with a driver, people, or pets.What are Class 3 lasers used for?
Class 3R lasers are continuous wave (CW), intermediate power (1-5 mW) devices. Some examples of Class 3R laser uses are the same as Class 2 lasers with the most popular uses being laser pointers and laser scanners. Direct viewing of the Class 3R laser beam could be hazardous to the eyes.What is laser leveling in agriculture?
Laser land leveling is leveling the field within certain degree of desired slope using a guided laser beam throughout the field.How do you use auto level?
- An Auto Level is a level with a compensator.
- Setup your tripod as level as possible, step on tripod legs to drive into the ground.
- Attach auto level to the tripod.
- Adjust level so bubble is centered in vial.
- Adjust recital until crosshairs are clear.
- Adjust the objective lens until object you are sighting on is clear.
